Low Voltage DC Isolator Switch Solar Gd32r-4s 100A Automatic Transfer Switch 2mc4

Certification : ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949

Place of Origin : China

Brand Name : Golden Electric /OEM

MOQ : 1

Packaging Details : Carton/Pallet

Delivery Time : Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays

Payment Terms : LC, T/T, PayPal, Western Union

Supply Ability : 5000/Month

Run : Plug-In

Common Model : Ukf

Structure of Operating : Manual

Brand : Golden/OEM

Color : Grey

Thickness : 1.5mm

Function : Conventional Circuit Breaker, Overcurrent Protecti

Model No. : Gd32r-4s(2mc4)

Waterproof : IP66

Current : 16A, 25A, 32A

Wiring : Upside Input, Downside Output

Working Temperature : -5 to +60 Degree Celsius

Rated Insulation Voltage : 1500V

Tightening Torque Terminal Screws M4 : 1.2-1.8nm

Pollution Degree : 2

Flexible : 4~10mm2

Solid or Standard : 4~16mm2

Transport Package : Standard Export Carton

Specification : 1p/2p/3p/4p

Trademark : Golden Electric or Customize

Origin : China

HS Code : 8543709990

Type : Low-voltage

Structure : Single-column Disconnector

Installation : Home Use and Outdoor Use

Operation : Manual

Grounding Mode : Un Grounded

Grounding : Un Grounded

Samples : US$ 2/Piece 1 Piece(Min.Order) | Request Samp

Customization : Available | Customized Request

Contact Now

Product Description

Modular design, DC insulation voltage 1500V, compact structure, 2-8 Pole optional
IP66 box design, switch rotation operator with three lockable positions, to prevent misoperation
Suitable for different specifications of waterproof cable connector or MC4 connector
The zero line bridge with Angle design makes the connection easier
With sufficient internal space and good heat dissipation effect, the whole machine can work under -40ºC-70ºC with full load
High - speed "on - off" switching mechanism, using energy storage spring, fast switching, maximum switching time is less than 5ms
Contact self-cleaning design, reduce the resistance and energy consumption of DC switch, extend the life of switch
Magnetic arc extinguishing and gate arc extinguishing are used to suppress the arc effectively
Passed IEC/EN60947-3:2009+A1+A2,GB/T14048.3, with TUV,CE certification

Low Voltage DC Isolator Switch Solar Gd32r-4s 100A Automatic Transfer Switch 2mc4
1. Non-polar design
2. Modular design, 2-8 grades available models
3. Positive contact, negative contact optional
4. Various installation methods such as single-hole installation, panel installation, power distribution installation, door lock installation, and external installation are optional
4. Using imported seals, the installation can make the whole machine reach IP66 level
5. The design of rated insulation voltage of 1500V has passed IEC/EN60947-3:2009+A1+A2, AS60947.3, UL508I, testing and TUV, CE, CB, SAA, UL and other international certifications

Product Parameters

The following data are according to IEC/EN60947-3:2009+A1+A2, AS60947.3, UL508I, GB/T14048.3, use category DC-PV2/DC-PV1
The main parameters GD32R-4S
Rated insulation voltage(Ui) 1500V
Rated thermal current(lth) 16A 25A 32A
Rated impulse withstand voltage(Uimp) 8000V
Rated short-time withstand current (1s)(lcw) 2,4,6,8 800A 900A 1000A
2H,3H,4H 1300V 1500V 1700V
Rated short-circuit making capacity(lcm) 2,4,6,8 800A 900A 1000A
2H,3H,4H 1300V 1500V 1700V
Rated limited short-circuit current(lcc) 5000A
Maximum fuse size gL(gG) 40A 63A 80A
Maximum cable cross-section (including jumper wires
single wire or standard 4-16mm2
Flexible 4-10mm2
Flexible (+ multicore cable end) 4-10mm2
Torque
Tightening torque of terminal M4 screw 1.2-1.8Nm
Panel Mounting Screw ST4.2 (304 Stainless Steel) Tightening Torque 0.8-0.9Nm
Tightening torque for single hole mounting nut M16 2.0-2.5Nm
Tightening torque of knob M3 screw 0.5-0.7Nm
Switching torque 0.9-1.9Nm
Screw torque 1.5-2.0Nm
Maximum power loss per contact pair
2 0.8W 2W 3W
4 1.6W 4W 6W
6 2.4W 6W 9W
8 3.2W 8W 12W
2H 0.4W 1W 1.5W
3H 0.6W 1.5W 2.25W
4H 0.8W 2W 3W
General parameters
Switch knob position Close at 12 o'clock, open at 3 o'clock (optionally close at 9 o'clock, open at 12 o'clock)
Mechanical life 10000
Number of DC poles 2 or 4 (6/8 optional)
Distance between contacts (between poles) 8mm
Operating temperature -40 to +85ºC
Storage temperature -40 to +85ºC
Pollution level 2
Overvoltage category III
IP rating of shaft and mounting screws IP66

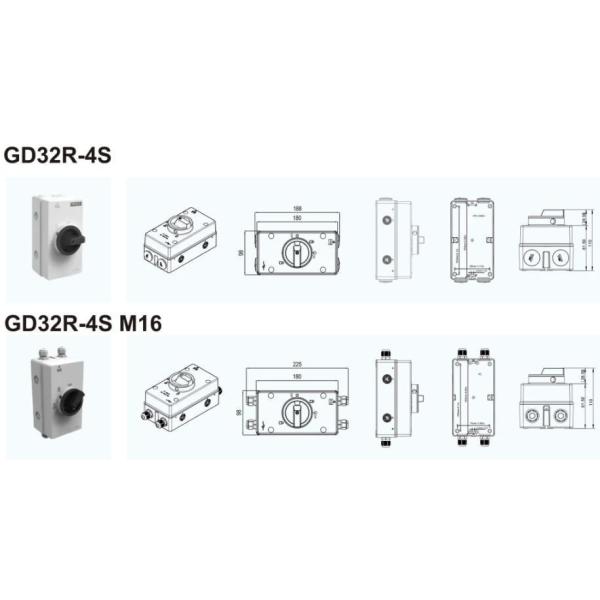

Dimensions
